Analog Devices
AD4694BCBZ-RL7
- Part number
- AD4694BCBZ-RL7
- Apex part #
- APX-IC-AD4694BCBZ-RL7-5516
- Package

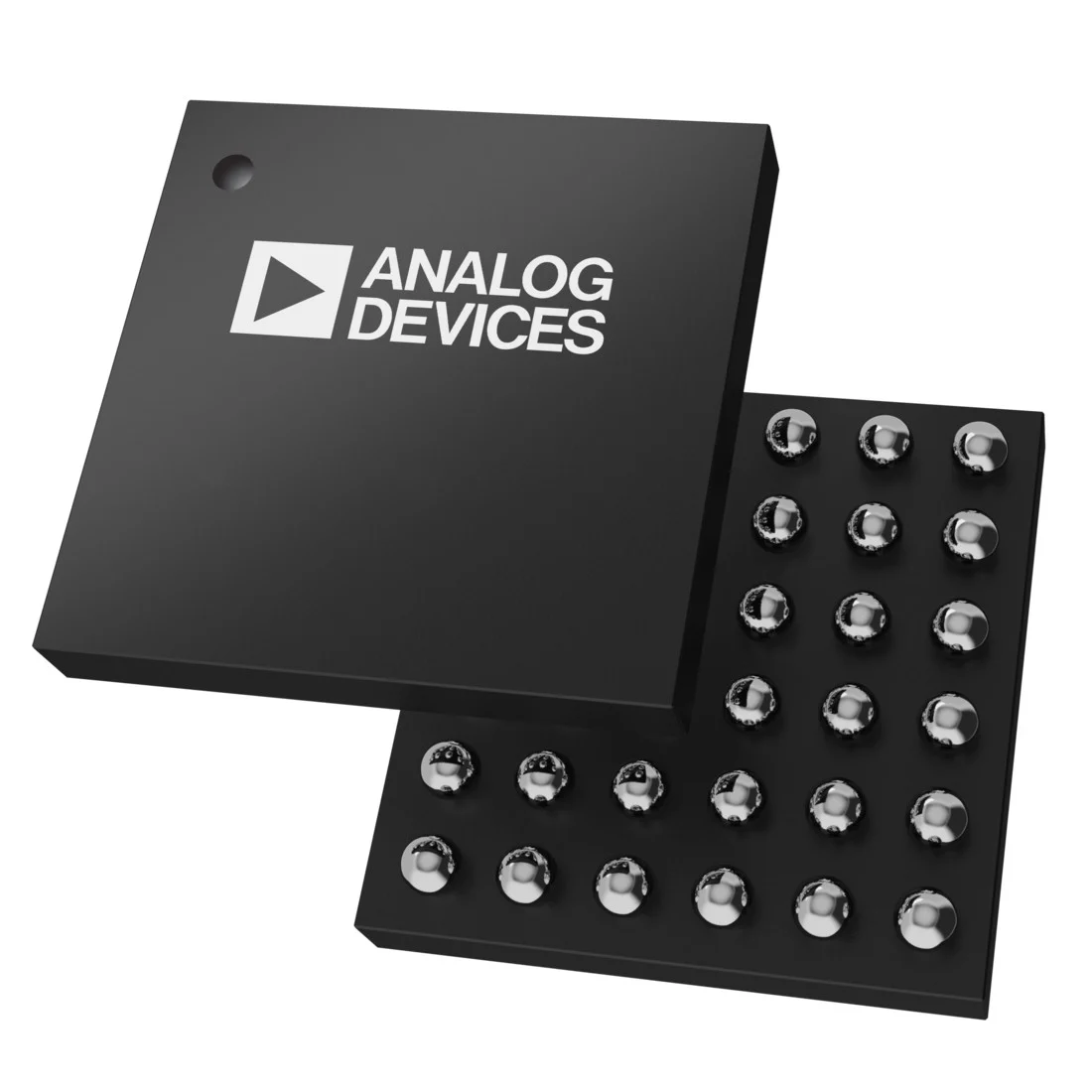

- 36-Ball WLCSP (2.96mm x 2.96mm x 0.50mm)
- Mounting type
- Surface Mount
Manufacturer specifications
| Package | 36-Ball WLCSP (2.96mm x 2.96mm x 0.50mm) |
|---|---|
| Pin count | 36 |
Source · Analog Devices
Manufacturer family characteristics · AD4694
| Operating temperature range | −40°C to +125°C |
|---|
Source · Analog Devices
Distributor catalog specifications
| Number of A/D Converters | 1 |
|---|---|
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Number of Bits | 16 |
| Voltage - Supply, Digital | 1.14V ~ 1.89V |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 8 |
| Input Type | Single Ended |
| Supplier Device Package | 36-WLCSP (2.96x2.96) |
| Data Interface | 4-Wire Serial, SPI |
| Mounting Type | Surface Mount |
| Configuration | MUX-ADC |
Source · DigiKey
Documents & media
Product details
AD4694BCBZ-RL7 is listed in the 36-Ball WLCSP (2.96mm x 2.96mm x 0.50mm) package.
DigiKey lists Voltage - Supply, Analog as 2.7V ~ 5.5V and Voltage - Supply, Digital as 1.14V ~ 1.89V.
- Part number
- AD4694BCBZ-RL7
- Manufacturer
- Analog Devices
- Apex part #
- APX-IC-AD4694BCBZ-RL7-5516
Category · Analog-to-Digital Converters (ADC)
