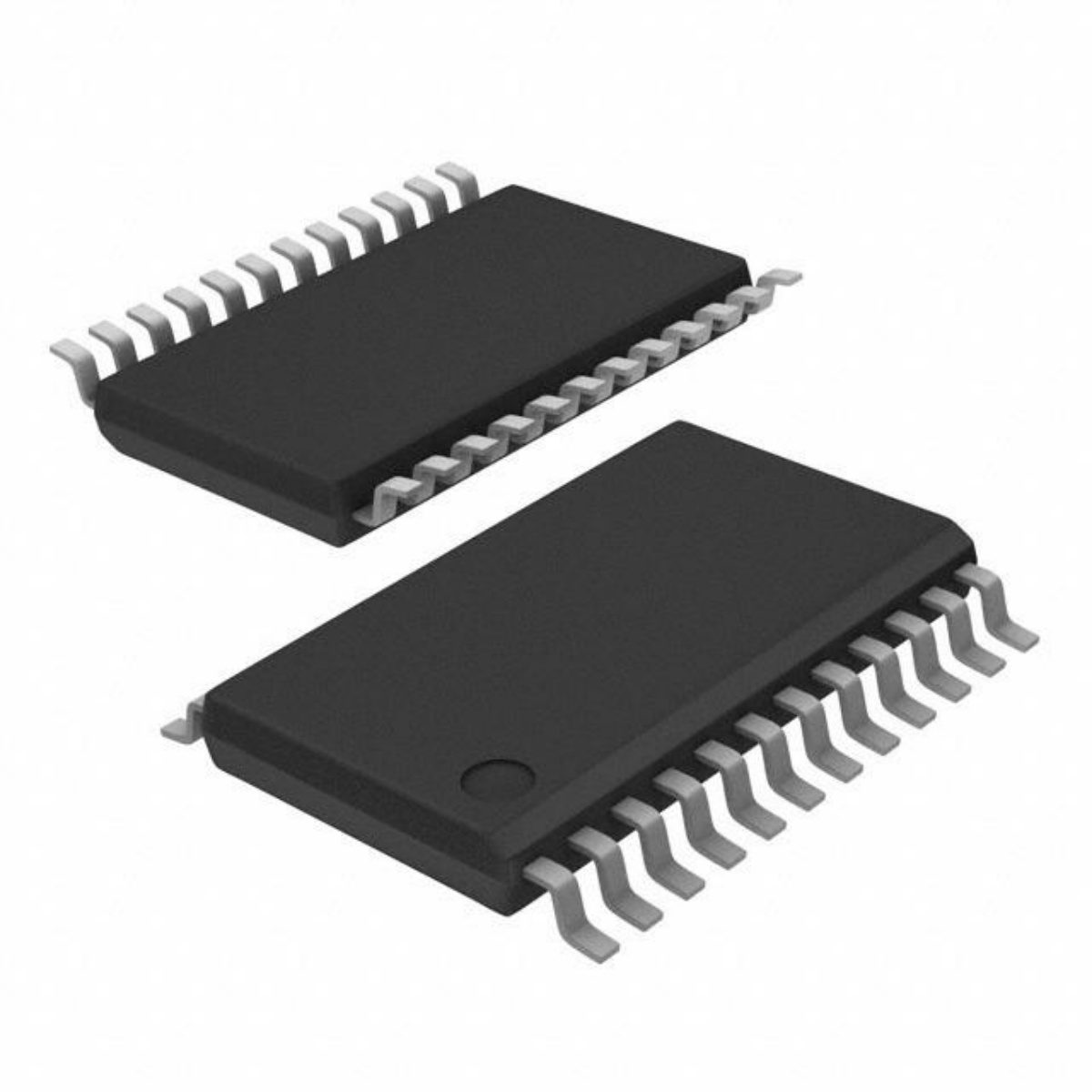

Catalog illustration for AD7190BRUZ-REEL
Product illustration

Analog Devices

AD7190BRUZ-REEL

Part number
AD7190BRUZ-REEL
Apex part #
APX-IC-AD7190BRUZ-REEL-0252
Package
24-Lead TSSOP
Mounting type
Surface Mount

Request a quote

Send your required quantity for price, availability and lead time.

Upload BOM

Manufacturer specifications

Package24-Lead TSSOP
Pin count24

Source · Analog Devices

Distributor catalog specifications

Clock Frequency2.4576MHz~5.12MHz、4.92MHz
Operating Temperature-40℃~+105℃
S/N Ratio120dB
Data rate4800Hz
Voltage - Supply2.7V~5.25V、4.75V~5.25V
Resolution(Bits)24
Quiescent Current (Iq)2uA
Sampling Rate4800Hz
FeaturesProgrammable gain、Multiplexers、Built-in temperature sensor
InterfaceSPI

Source · JLCPCB

Documents & media

Product details

AD7190BRUZ-REEL is listed in the 24-Lead TSSOP package.

JLCPCB lists Clock Frequency as 2.4576MHz~5.12MHz、4.92MHz and Data rate as 4800Hz.

Part number
AD7190BRUZ-REEL
Manufacturer
Analog Devices
Apex part #
APX-IC-AD7190BRUZ-REEL-0252
