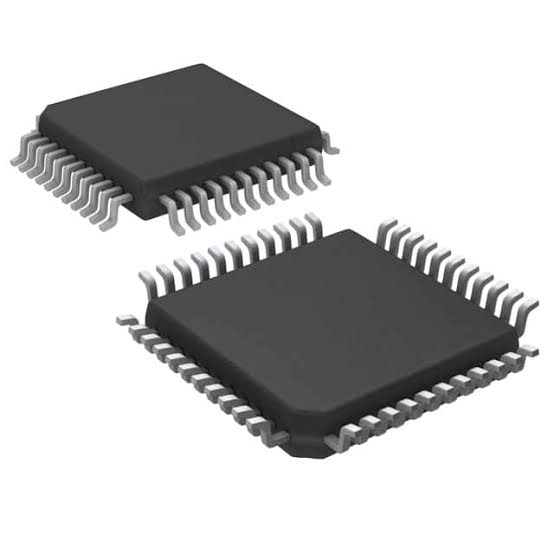

Catalog illustration for AD7722
Product illustration

AD7722

Part number
AD7722
Apex part #
APX-IC-AD7722-5589
Manufacturer
Pending confirmation

Request a quote

Send your required quantity for price, availability and lead time.

Upload BOM

Specifications

Technical specifications for AD7722 are pending confirmation. Request the manufacturer datasheet for your design review.

Package pin assignments (44 listed)
PinSignal
1DB2
2DB1
3DB0
4CFMT/~{DRDY}
5DVAL/~{RD}
6DGND
7~{UNI}
8P/~{S}
9AGND
10AGND1
11CLKIN
12XTAL
13AGND
14AVDD1
15AGND
16VIN-
17RESET
18VIN+
19AGND
20AVDD
21AGND
22REF1
23AVDD
24REF2
25AGND
26AGND
27CAL
28DGND
29~{CS}
30SYNC
31DB15
32DB14
33DB13
34DB12
35DB11
36DB10
37FSO/DB9
38SDO/DB8
39DVDD
40SCO/DB7
41FSI/DB6
42SFMT/DB5
43DOE/DB4
44TSI/DB3
