Analog Devices
ADEMA124ACPZ-RL7
- Part number
- ADEMA124ACPZ-RL7
- Apex part #
- APX-IC-ADEMA124ACPZ-RL7-5545
- Package

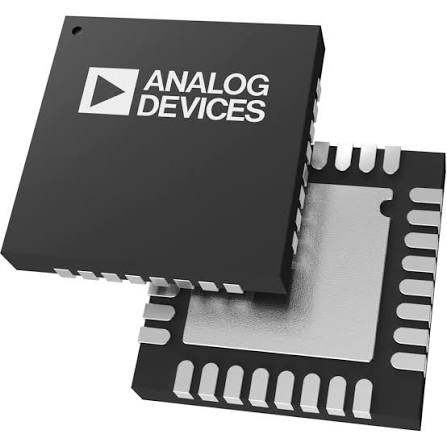

- 32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)
- Mounting type
- Surface Mount
Manufacturer specifications
| Package | 32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP) |
|---|---|
| Pin count | 32 |
Source · Analog Devices
Distributor catalog specifications
| Number of A/D Converters | 4 |
|---|---|
| Architecture | Sigma-Delta |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.97V ~ 3.63V |
| Number of Bits | 24 |
| Voltage - Supply, Digital | 2.97V ~ 3.63V |
| Sampling Rate (Per Second) | 64k |
| Number of Inputs | 4 |
| Operating Temperature | -40°C ~ 125°C |
| Input Type | Differential |
| Data Interface | SPI |
| Supplier Device Package | 32-LFCSP-WQ (5x5) |
| Configuration | ADC |
| Mounting Type | Surface Mount |
| Ratio - S/H:ADC | 0:4 |
Source · DigiKey
Documents & media
Product details
ADEMA124ACPZ-RL7 is listed in the 32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP) package.
DigiKey lists Voltage - Supply, Analog as 2.97V ~ 3.63V and Voltage - Supply, Digital as 2.97V ~ 3.63V.
- Part number
- ADEMA124ACPZ-RL7
- Manufacturer
- Analog Devices
- Apex part #
- APX-IC-ADEMA124ACPZ-RL7-5545
Category · Analog-to-Digital Converters (ADC)
