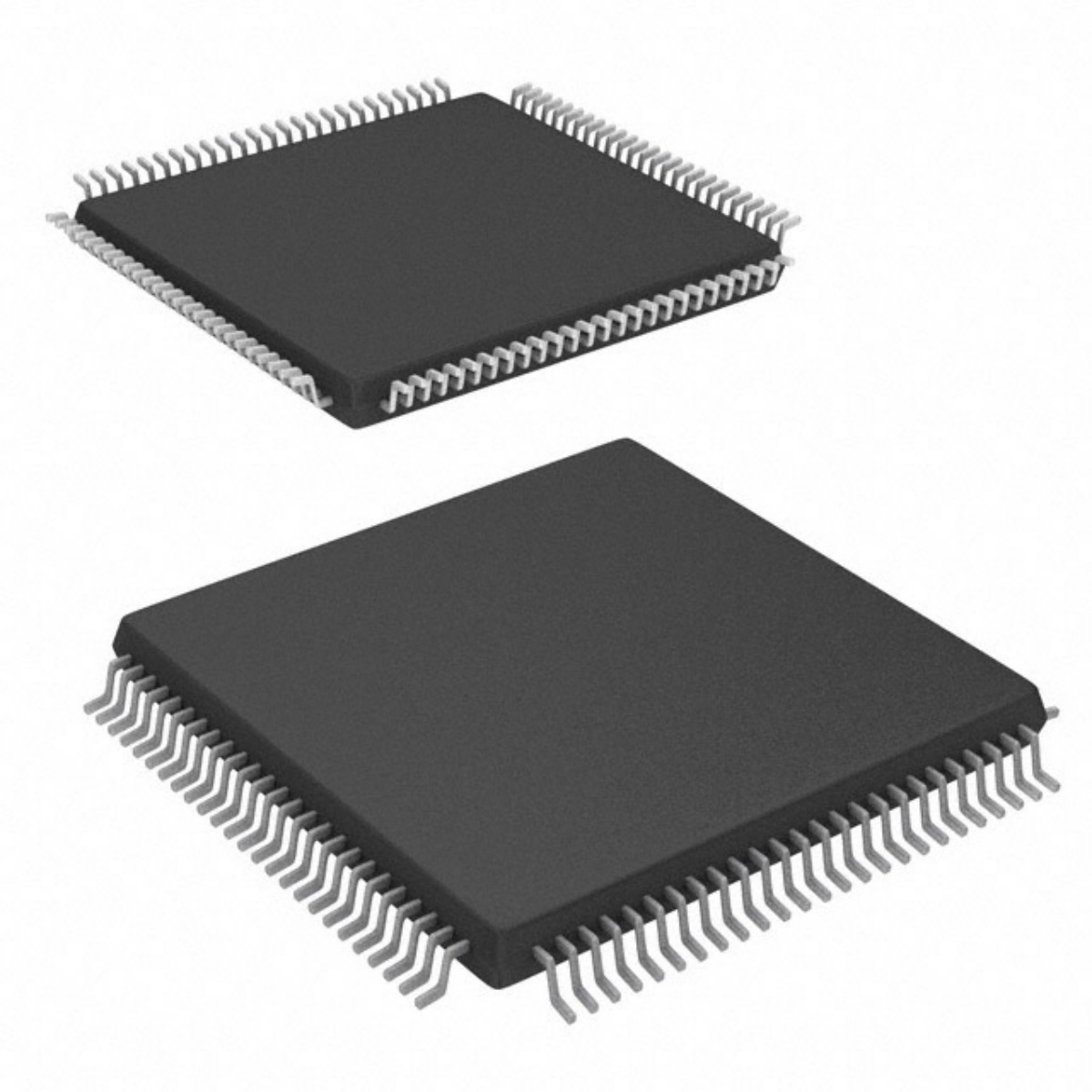

Catalog illustration for ATMEGA2560-16AU
Product illustration

Microchip Technology

ATMEGA2560-16AU

Part number
ATMEGA2560-16AU
Apex part #
APX-IC-ATMEGA2560-16AU-0165
Package
TQFP-100(14x14)
Mounting type
Surface Mount

Request a quote

Send your required quantity for price, availability and lead time.

Upload BOM

Distributor catalog specifications

PackageTQFP-100(14x14)
EEPROM4KB
Operating Temperature-40℃~+85℃
CPU Maximum Speed16MHz
Program Memory TypeFLASH
Program Storage Size256KB
Voltage - Supply4.5V~5.5V
Core Size8 Bit
RAM Size8KB
CPU CoreAVR
Number of I/O86
FeaturesPower-on reset (POR)、Undervoltage detection (BOR/LVD/LVR/LVI)、Watchdog reset、Built-in general-purpose timer、Programmable watchdog、Touch function
ADC (Bit)10bit
Oscillator TypeBuilt-in

Source · JLCPCB

Documents & media

Product details

ATMEGA2560-16AU is listed in the TQFP-100(14x14) package.

JLCPCB lists CPU Maximum Speed as 16MHz and Program Memory Type as FLASH.

Part number
ATMEGA2560-16AU
Manufacturer
Microchip Technology
Apex part #
APX-IC-ATMEGA2560-16AU-0165
