LM1117MPX-3.3/NOPB
| Feature |
|---|
| 800mA fixed-output LDO regulator |
| Output voltage: 3.3 V fixed |
| Maximum output current: 800 mA |
| Input voltage range: up to 15 V |
| Dropout voltage: typ. 1.1 V at 800 mA |
| Noise / PSRR profile: general-purpose LDO |

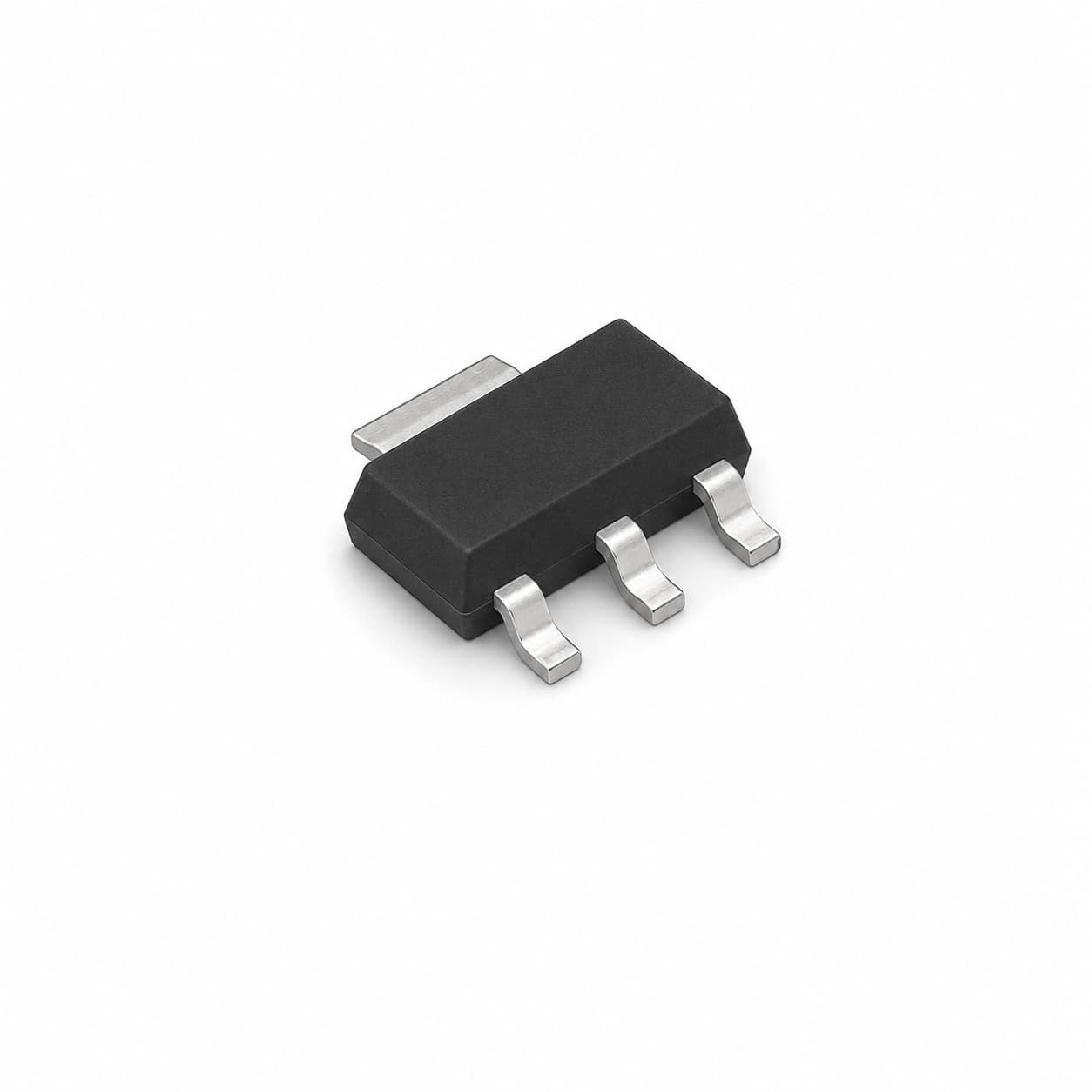

| Package: SOT-223-4 6.5×3.5 mm (NDC/MP) |
| Suitable for MCU boards, embedded modules and 3.3 V rails |
LM1117MPX-3.3/NOPB is a Texas Instruments low-dropout linear regulator for MCU boards, embedded modules and 3.3 V rails, providing 3.3 V fixed output capability and up to 800 mA load current in a SOT-223-4 6.5×3.5 mm (NDC/MP) package.
