Texas Instruments
TMS320C6745DPTPD4
Low power C674x floating-point DSP- 456MHz, QFP
- Part number
- TMS320C6745DPTPD4
- Apex part #
- APX-IC-TMS320C6745DPTPD4-0223

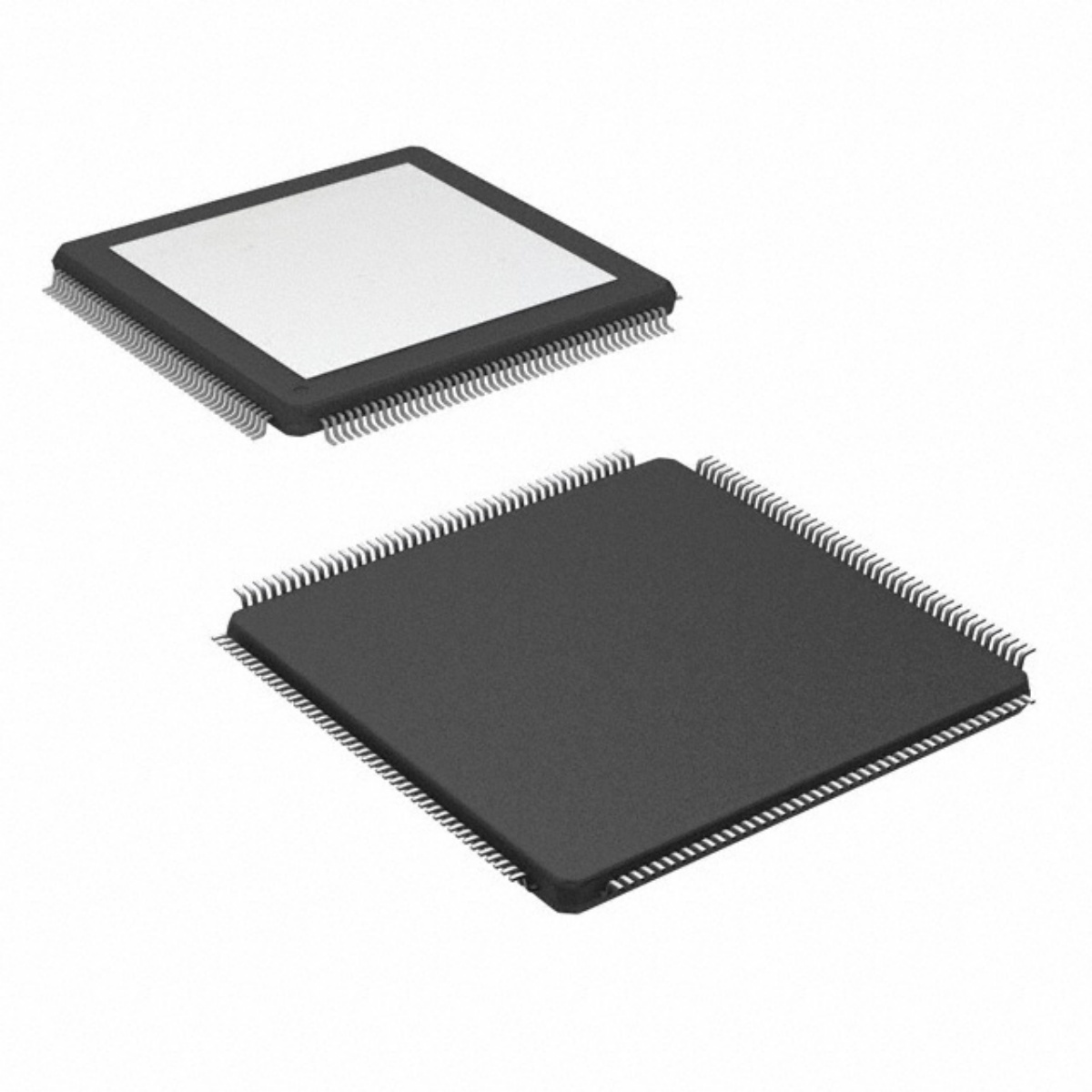

- Package
- HLQFP (PTP)
Manufacturer specifications
| Package | Pins | HLQFP (PTP) | 176 |
|---|---|
| Operating temperature range (°C) | -40 to 90 |
| Package qty | Carrier | 40 | JEDEC TRAY (5+1) |
Source · Texas Instruments
Manufacturer family characteristics · TMS320C6745
| Operating system | TI RTOS |
|---|
Source · Texas Instruments
Distributor catalog specifications
| Clock Rate | 456MHz |
|---|---|
| Type | 定点/浮点 |
| Non-Volatile Memory | External |
| On-chip RAM | 320KB |
| Voltage - Core | 1.2V |
| Voltage - I/O | 3.3V |
| communication interface | USB、EBI/EMI、I2C、Ethernet MAC、UART、McASP、SPI |
| Features | Integrated PWM control、RTC and timer、High-speed peripheral interface、Hardware MAC acceleration、DMA data transfer、Parallel data channel、Secure storage and protection、Zero-overhead loop |
Source · JLCPCB
Documents & media
- Package drawing ↗
- Manufacturer datasheet ↗
- Design resources ↗
- Manufacturer product information ↗
- Manufacturer family specifications ↗
- Functional block diagram · datasheet p. 4 ↗
- Pin assignments and functions · datasheet p. 26 ↗
- Recommended operating conditions · datasheet p. 61 ↗
- Request a datasheet, footprint or 3D model →
Product details
TMS320C6745DPTPD4 is listed in the HLQFP (PTP) package.
JLCPCB lists Clock Rate as 456MHz and Non-Volatile Memory as External.
- Part number
- TMS320C6745DPTPD4
- Manufacturer
- Texas Instruments
- Apex part #
- APX-IC-TMS320C6745DPTPD4-0223
Category · Video / Imaging DSP Processors
