Texas Instruments
TPS65090
6-V to 7-V Power Management IC (PMIC) with switchmode charger, 3 DCDCs, 2 LDOs, and 7 load switches
- Part number
- TPS65090
- Apex part #
- APX-IC-TPS65090-1261
Manufacturer package options

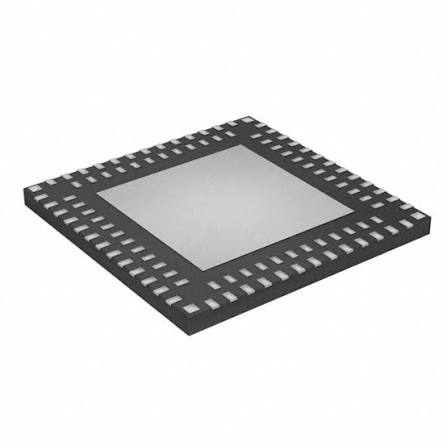

| Package option · VQFN-MR (RVN) | 100 pins |
|---|
Source · Texas Instruments
Manufacturer family characteristics · TPS65090
| Product type | Processor and FPGA |
|---|---|
| Regulated outputs (#) | 5 |
| Step-down DC/DC converter | 3 |
| Step-up DC/DC converter | 0 |
| LDO | 2 |
| Vin (min) (V) | 6 |
| Vin (max) (V) | 17 |
| Vout (min) (V) | 1 |
| Vout (max) (V) | 5 |
| Iout (max) (A) | 5 |
| Step-down DC/DC controller | 0 |
| Step-up DC/DC controller | 0 |
| Switching frequency (max) (kHz) | 1840 |
| Shutdown current (ISD) (typ) (µA) | 1 |
| Switching frequency (typ) (kHz) | 1600 |
Source · Texas Instruments
Documents & media
- Manufacturer product information ↗
- Manufacturer datasheet ↗
- Package drawing · VQFN-MR (RVN) ↗
- Manufacturer family specifications ↗
- Pin assignments and functions · datasheet p. 3 ↗
- Absolute maximum ratings · datasheet p. 6 ↗
- Recommended operating conditions · datasheet p. 7 ↗
- Thermal characteristics · datasheet p. 8 ↗
- Functional block diagram · datasheet p. 26 ↗
- Request a datasheet, footprint or 3D model →
Product details
For the TPS65090 family, Texas Instruments lists Shutdown current (ISD) (typ) (µA) as 1.
- Part number
- TPS65090
- Manufacturer
- Texas Instruments
- Apex part #
- APX-IC-TPS65090-1261
Category · Battery Charger PMICs
