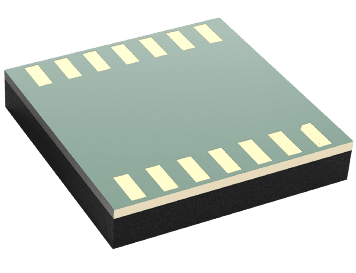

Generic VLGA-13 (NPL) integrated circuit package for gate driver ICs

esd association ansi esd s20 20 asa aviation suppliers association smta corporate member iso 14001 certified iso 13485 certified iso 45001 certified iso 9001 certified

UCC20225NPLR

Texas Instruments UCC20225NPLR

UCC20225NPLR VLGA-13 (NPL) Gate Driver IC

Product Model: UCC20225NPLR
Manufacturer: Texas Instruments
Package: VLGA-13 (NPL)
Product Type: Gate Driver IC
Driver Configuration: Disable, Programmable dead time
Number of Channels: 2
Peak Output Current: 6A
Supply Voltage: 3V ~ 18V
Operating Temperature: -40°C ~ 125°C
Datasheet: UCC20225NPLR
Upload BOM

UCC20225NPLR from Texas Instruments is a Gate Driver IC in VLGA-13 (NPL). 4A/6A dual-channel basic isolated gate driver with single PWM input | NPL | 13 | -40 to 125. Key parameters include Disable, Programmable dead time driver configuration, 2 channel(s), 6A peak output current, 3V ~ 18V supply range, -40°C ~ 125°C operating temperature.

Use this product page for sourcing checks, datasheet review, and RFQ preparation. Availability, lead time, pricing, and order quantity must be confirmed by Apex Components before purchase.

SKU: APX-IC-UCC20225NPLR-6540 Category: Tags: , , Brand:

Product Specifications

Package

VLGA-13 (NPL)
Product Type

Gate Driver IC
Driver Configuration

Disable, Programmable dead time
Peak Output Current

6A
Supply Voltage

3V ~ 18V
Operating Temperature

-40°C ~ 125°C
