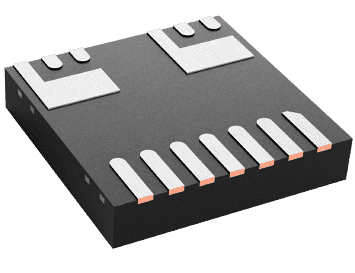

Generic WSON-13 (DLG) integrated circuit package for gate driver ICs

esd association ansi esd s20 20 asa aviation suppliers association smta corporate member iso 14001 certified iso 13485 certified iso 45001 certified iso 9001 certified

UCC21231ADLGR

Texas Instruments UCC21231ADLGR

UCC21231ADLGR WSON-13 (DLG) Gate Driver IC

Product Model: UCC21231ADLGR
Manufacturer: Texas Instruments
Package: WSON-13 (DLG)
Product Type: Gate Driver IC
Driver Configuration: Enable, High CMTI, Programmable dead time
Number of Channels: 2
Peak Output Current: 6A
Supply Voltage: 3V ~ 5.5V
Operating Temperature: -40°C ~ 125°C
Datasheet: UCC21231ADLGR
Upload BOM

UCC21231ADLGR from Texas Instruments is a Gate Driver IC in WSON-13 (DLG). 4A/6A dual-channel basic isolated gate driver with enable, programmable deadtime | DLG | 13 | -40 to 125. Key parameters include Enable, High CMTI, Programmable dead time driver configuration, 2 channel(s), 6A peak output current, 3V ~ 5.5V supply range, -40°C ~ 125°C operating temperature.

Use this product page for sourcing checks, datasheet review, and RFQ preparation. Availability, lead time, pricing, and order quantity must be confirmed by Apex Components before purchase.

SKU: APX-IC-UCC21231ADLGR-6335 Category: Tags: , , Brand:

Product Specifications

Package

WSON-13 (DLG)
Product Type

Gate Driver IC
Driver Configuration

Enable, High CMTI, Programmable dead time
Peak Output Current

6A
Supply Voltage

3V ~ 5.5V
Operating Temperature

-40°C ~ 125°C
