RS-485 vs. RS-422: Technical Comparison
While both RS-485 and RS-422 use differential signaling to achieve high noise immunity and long-distance communication, they are designed for different network topologies. RS-422 is intended for multi-drop networks (one driver, multiple receivers), whereas RS-485 supports true multi-point networks (multiple drivers and receivers).
| Specification | RS-422 | RS-485 |
|---|---|---|
| Network Topology | Point-to-Point or Multi-drop | Multipoint |
| Transmission Mode | Simplex or Full-Duplex (4-wire) | Half-Duplex (2-wire) or Full-Duplex (4-wire) |
| Max Nodes | One active driver; receiver capacity depends on the implementation | Node capacity depends on unit load and the selected device |
| Max Distance | Depends on data rate, cable, topology and termination | Depends on data rate, cable, topology and termination |
| Termination | Required at the far end of the cable | Required at both ends of the main cable |
How to Select a Transceiver
Network Topology
Determine if you need Point-to-Point, Multi-drop (RS-422), or Multipoint (RS-485).
Duplex (2/4-Wire)
Choose Half-Duplex (2-wire) for bidirectional comms on one pair, or Full-Duplex (4-wire) for simultaneous Tx/Rx.
Data Rate & Distance
Higher data rates limit max cable length. Slew-rate limited parts reduce EMI for lower speeds.
Node Count
Review the device unit-load rating and the full network loading before setting a node limit.
Supply Voltage
Match to your system. Common options are 5V, 3.3V, and wide-range supplies.
Isolation
Required to break ground loops or protect against high voltage differences between nodes.
Termination
Consider integrated termination resistors to save board space and simplify design.
Temperature Range
Match the operating-temperature range and qualification requirements to the application and datasheet.
Common Applications

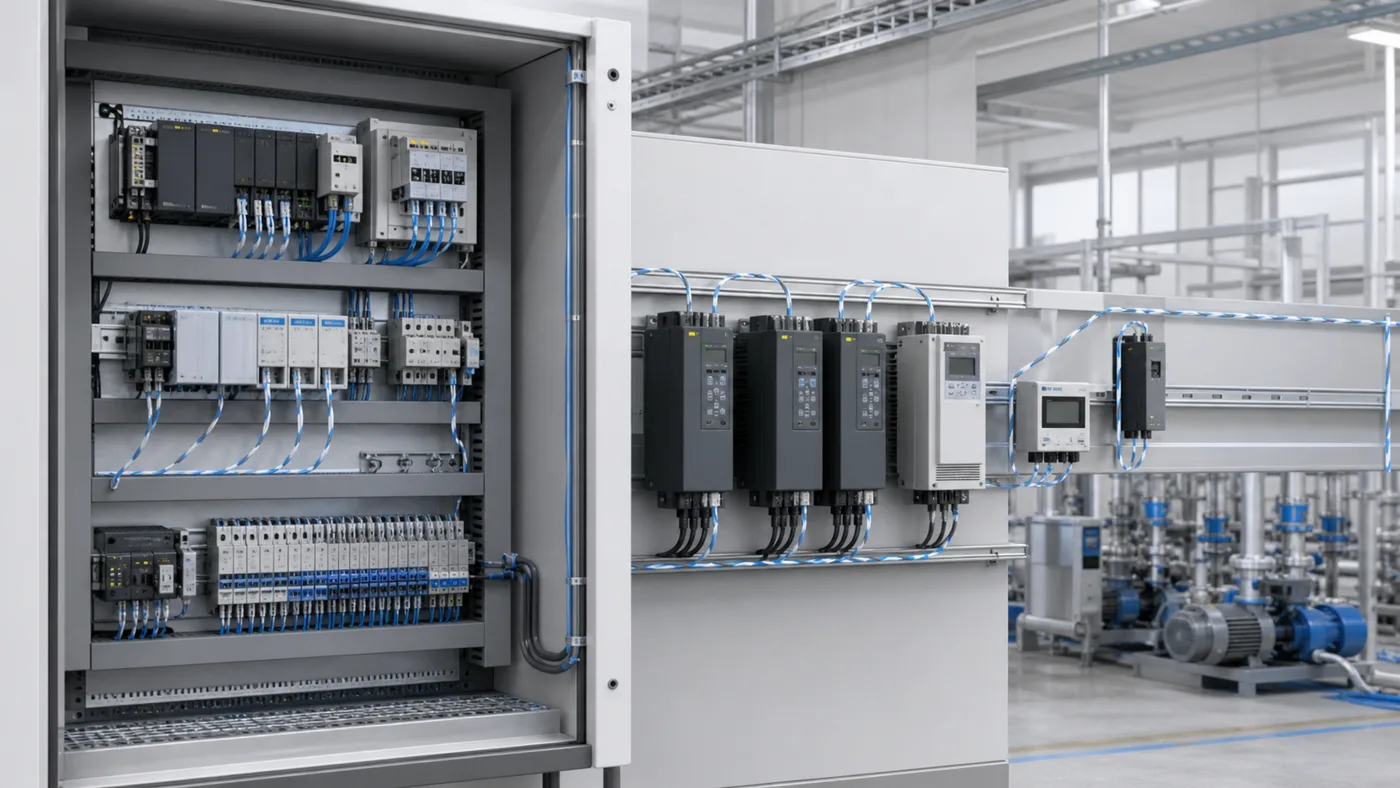

Connected control and instrumentation systems
Use the application environment to identify isolation, protection, topology and temperature requirements. Confirm every selected device against its manufacturer datasheet.
Frequently Asked Questions
What is the difference between RS-485 and RS-422?
Both use differential signaling, but the supported topology and driver behavior differ. Select the standard from the actual network architecture and verify the chosen transceiver datasheet rather than assuming direct interchangeability.
When should I use an isolated transceiver?
Consider isolation where nodes may have ground-potential differences, significant electrical noise or a defined safety-isolation requirement. Confirm the required ratings and creepage/clearance against the system standard and datasheet.
Do I need termination resistors?
Termination depends on cable impedance, topology, length and edge rate. Validate the network as a complete transmission line rather than applying one fixed resistor rule to every design.
What is fail-safe biasing?
Fail-safe biasing establishes a known receiver state when no driver is actively controlling the bus. The required external network depends on the receiver’s built-in fail-safe behavior and the system termination.
Can RS-485 and RS-422 devices communicate with each other?
Possible interoperability depends on topology, driver control, voltage limits and the individual devices. Treat compatibility as an engineering review item, not a universal guarantee.
What does unit load mean?
Unit load describes how much receiver loading a device presents to the bus. Use the datasheet unit-load value when calculating the supported node count.
How do slew-rate-limited transceivers help?
Controlled edge rates can reduce high-frequency energy and simplify lower-speed networks, but the permitted data rate and cable conditions remain device-specific.
What affects the maximum cable length?
Data rate, cable properties, topology, termination, noise and receiver thresholds all affect practical distance. Confirm performance under the actual installation conditions.
