Infineon Technologies
IKW75N65EH5
- Part number
- IKW75N65EH5
- Apex part #
- APX-DISC-IKW75N65EH5-0278
- Package
- TO-247-3
Distributor catalog specifications
| Package | TO-247-3 |
|---|---|
| Gate-Emitter Threshold Voltage (Vge(th)@Ic) | 3.2V@0.75mA |
| Operating Temperature | -40℃~+175℃ |
| Input Capacitance(Cies) | 4.2nF |
| Td(off) | 174ns |
| Gate Charge(Qg) | 160nC@15V |
| Switching Energy(Eoff) | 900uJ |
| Reverse Transfer Capacitance (Cres) | 17pF |
| Turn-On Energy (Eon) | 2.3mJ |
| Current - Collector Pulsed (Icm) | 300A |
| Collector-Emitter Breakdown Voltage (Vces) | 650V |
| Reverse Recovery Time(trr) | 92ns |
| Current - Collector(Ic) | 90A |
| Vce Saturation(VCE(sat)) | 2.1V@75A,15V |
| Pd - Power Dissipation | 395W |
| Output Capacitance(Coes) | 130pF |
| Td(on) | 28ns |
Source · JLCPCB
Documents & media
Product details

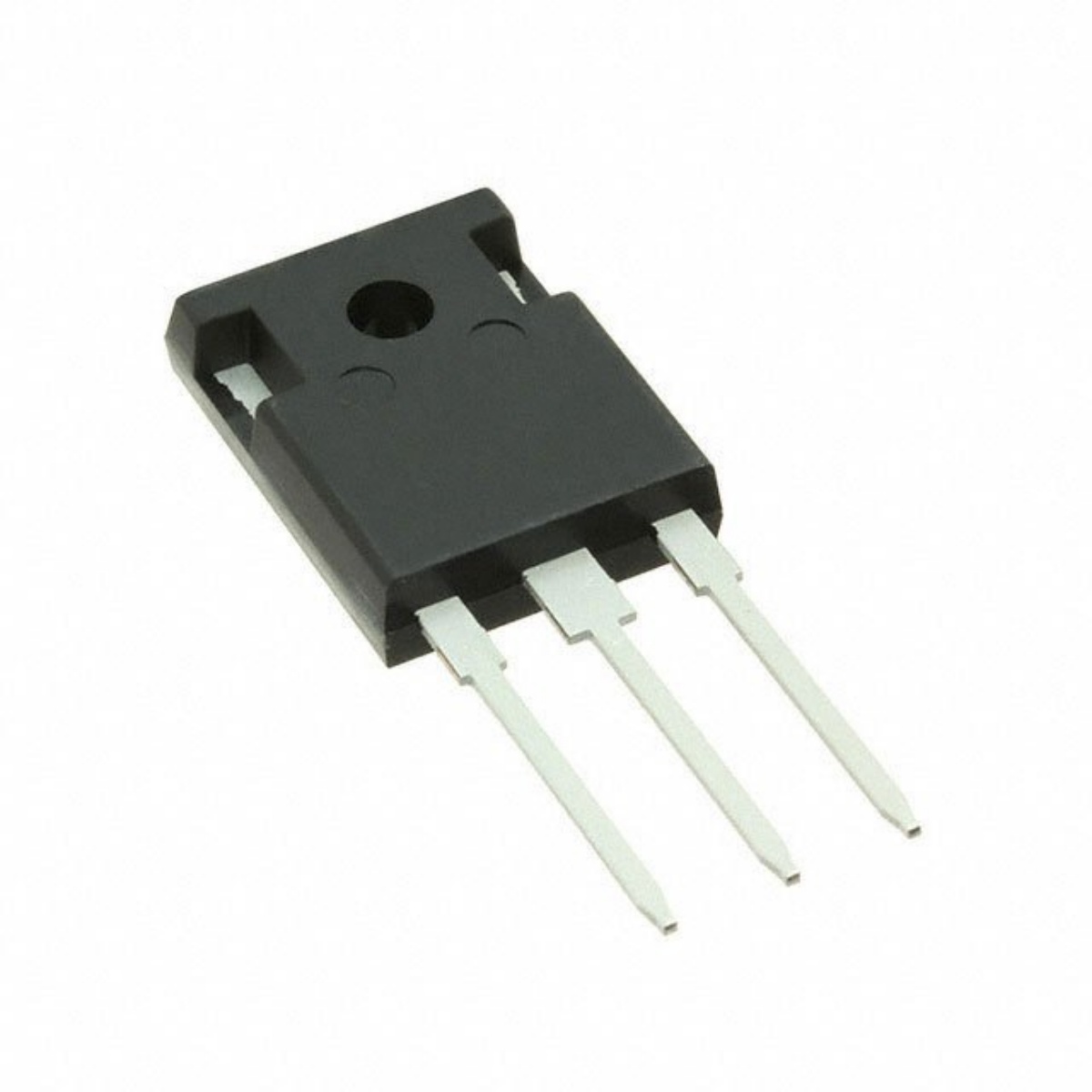

IKW75N65EH5 is listed in the TO-247-3 package.
JLCPCB lists Gate-Emitter Threshold Voltage (Vge(th)@Ic) as 3.2V@0.75mA and Input Capacitance(Cies) as 4.2nF.
- Part number
- IKW75N65EH5
- Manufacturer
- Infineon Technologies
- Apex part #
- APX-DISC-IKW75N65EH5-0278
Category · IGBTs
